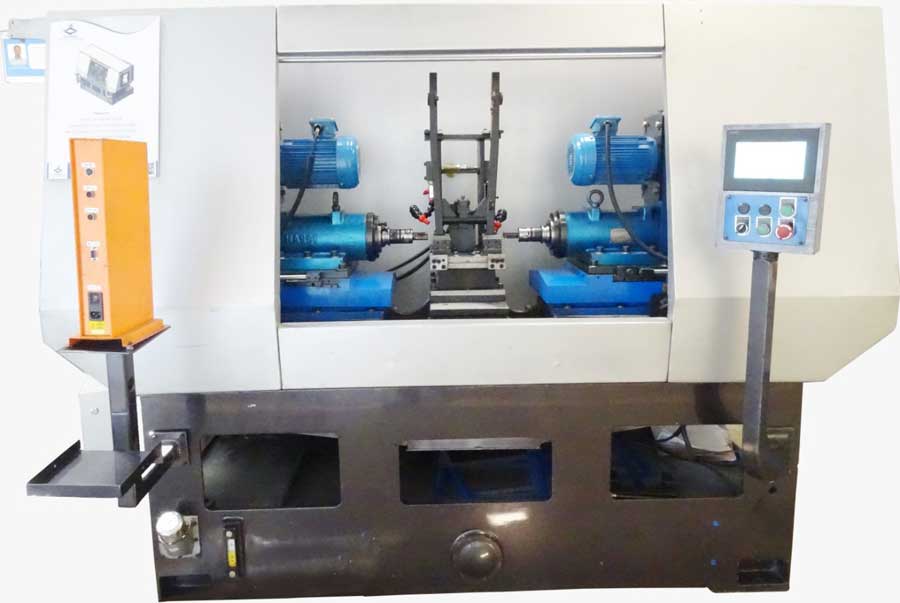

Fine Boaring SPM
Technical Specifications
- BORING HEAD SHOULD BE STD MADE BY TAIWANESE.
- BORING OPERATION ON BRAKE PEDAL OF Ø27.
- THE LENGHT SHOULD BE 77 mm.
- Feed rapid with sensor and programming
- Consistancy in hole, Concentricity within 0.02mm
- Operating pneumatic pressure range 4 - 10 bar
- Operating Hydraulic pressure range 15 - 16 bar
- Interlock with air pressure, coolant level, hydraulic oil level, hydraulic oil temprature, lubrication oil
- Door interlock for operator safety
- We use WOHLHAUPTER boaring tool having adjustment range in 2 micron (Digitally)
