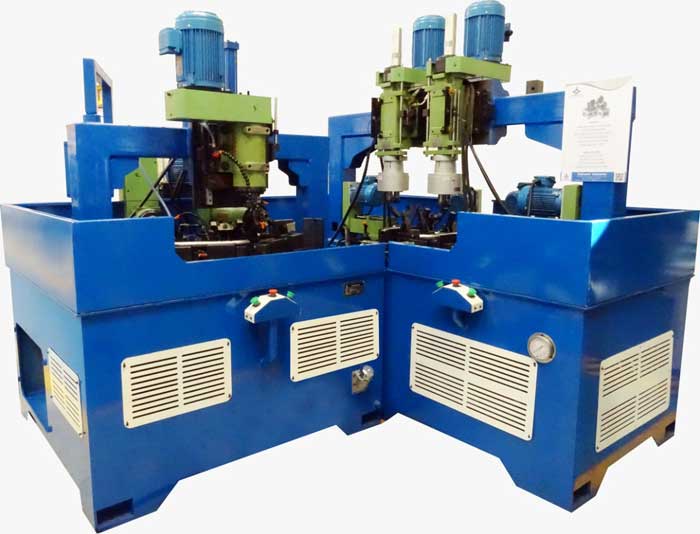

Multi Spindal Drilling Machine

Multi Spindal Drilling Machine

Technical Specifications

  • TUBE SIZES : OUTER DIA. Ø45 mm
  • TUBE THICKNESS - 1.6 mm
  • HYDRAULIC MOTOR CAPACITY - 5 H.P.
  • CYCLE TIME < 35 SEC (FOR 7 DRILLS)
  • 7 DIFFERENT DRILL HOLES IN SINGLE SETUP.
  • Ø15.5mm & Ø5 mm DRILLS ON SINGLE SPINDLE.
  • Ø5 mm DRILLS (4 HOLES) ON SINGLE SPINDLE.
  • Ø30 mm DRILLING ALSO AT A TIME.

Salient Features

  • POSITION ACCURACY OF MACHINE- 0.1 mm (max)
  • MULTIPLE DRILLING AT ONCE.
  • EASY TO MAINTENANCE AND HANDLING FEATURES.
  • CONSISTENTLY GOOD PRODUCTION QUALITY.
  • NO NEED OF SKILLED OPERATOR.
  • SAFETY CURTAINS TENDS TO MORE SAFETY TO OPERATOR.
  • SUITABLE FOR RAPID MASS PRODUCTION WITH QUALITY.
  • DISPLAYS PRODUCTION COUNTER
  • DISPLAYS CYCLE TIME IN Sec
  • COOLANT FLUSHING ARRANGEMENT PROVIDED
